Grafana: User Guide

For those using Grafana on a pre-configured server for the first time. This guide explains how to work with organizations, find and view dashboards, understand the interface, and read metrics.

📌 Introduction: What is Grafana?

Grafana is a web application for visualizing and monitoring data from various sources. It allows you to create interactive dashboards that show:

  • system performance,
  • server resource usage,
  • application behavior,
  • logs and alerts.

💡 Grafana is the interface used to view data collected by Prometheus, Loki, Zabbix, and other systems.

🔐 1. Logging in to Grafana

  1. Open your browser and go to:

https://qcmon-qcint.quintessence.de/grafana/

  1. Enter your credentials:

    • Username and password provided by IT/DevOps
    • Or use the SSO login button (e.g., "Login with Keycloak")

💡 If you don’t know your credentials, contact IT or DevOps.

After logging in, you'll land on the Grafana home page, which typically displays:

  • Starred dashboards
  • Recently viewed dashboards
  • Important links (settings, documentation, etc.)

🏢 2. Organizations in Grafana

Grafana supports multiple organizations. These are logical zones where each can have its own:

  • dashboards,
  • users,
  • data sources.

How to check your current organization

  1. Click on your profile icon in the lower-left corner
  2. The menu will show the current organization name
  3. If you have access to multiple orgs — you'll see a Switch Organization button

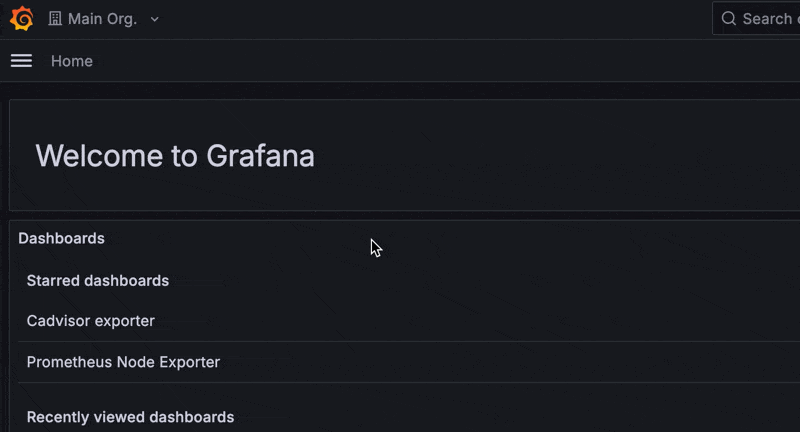

CleanShot 2025-05-28 at 15.58.31.gif

When this matters:

  • You can't see the required dashboard — it may belong to another org
  • Error "Dashboard not found" — check your current org
  • You work in multiple projects or environments — each may have its own organization

🧭 3. Grafana Interface: Layout & Navigation

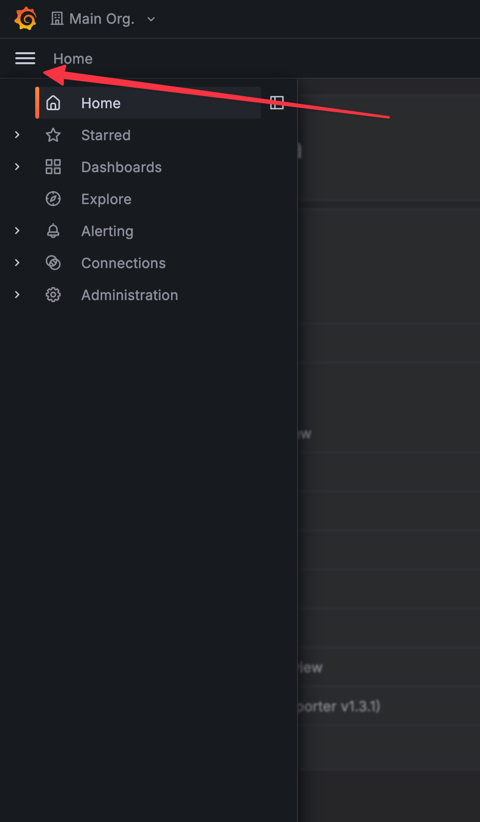

Side Menu:

Icon Section Description
📊 Dashboards Browse and search dashboards
🧭 Explore Real-time query exploration
🔔 Alerting View active alerts
⚙️ Configuration Data sources, settings (admin only)
👤 Profile Theme, language, org switch

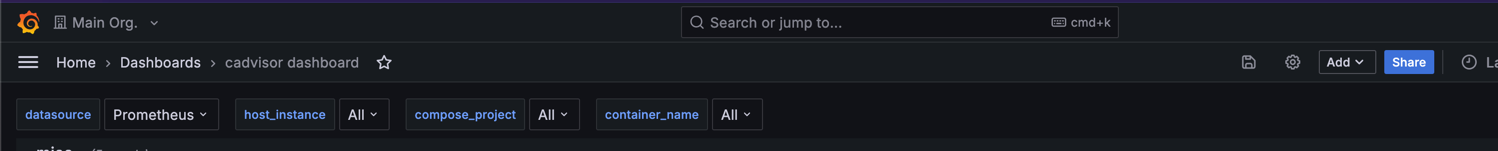

Top Bar:

  • Time range selection (e.g., last 1h, last 7d)
  • Auto-refresh interval
  • Dashboard and panel search
  • Edit and Save buttons (if permissions allow)

💡 If you don’t see buttons or menus, you probably don’t have edit permissions.


📋 4. Dashboards

A dashboard is a collection of panels grouped around a specific topic.

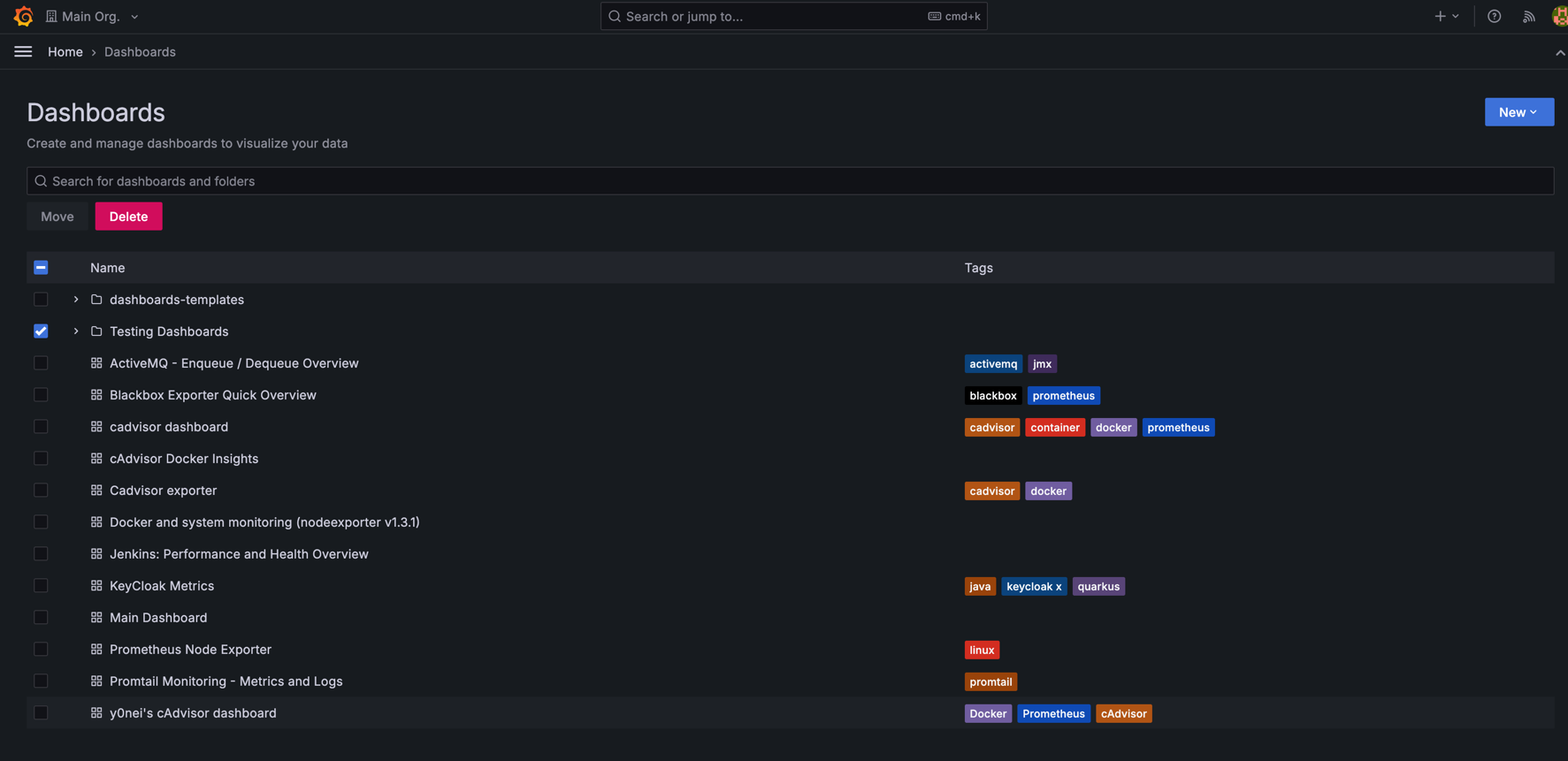

How to open a dashboard:

  1. Menu → Dashboards → Browse
  2. Use the search box or navigate folders on the left
  3. Click the dashboard name to open it

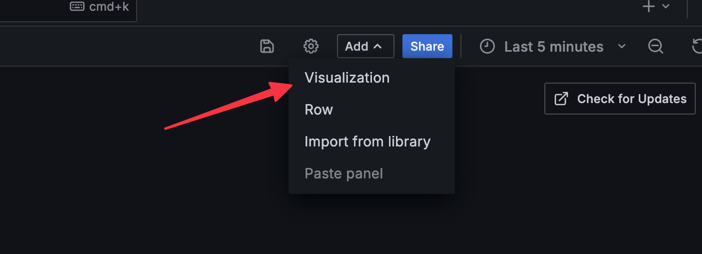

Useful actions:

  • ⭐ Click the star icon to add to your favorites
  • 🖉 Use the "Edit" button if you have permissions
  • 💾 "Save As" lets you save a copy of the dashboard (for experiments, testing)

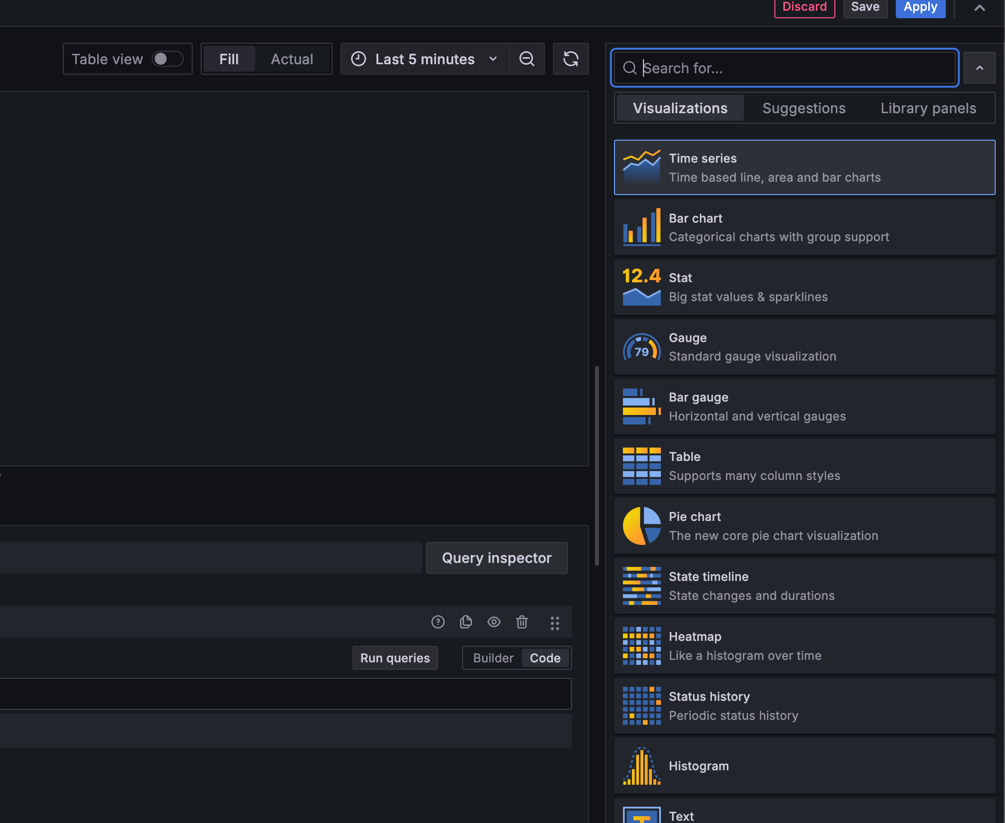

📈 5. Panels

Each panel is a visualization of a data query.


Type Purpose
Graph Time series line chart
Stat Single value display (e.g., CPU usage)
Table Structured tabular data
Gauge Circular meter indicator
Bar Gauge Horizontal bar indicator


What you can do with a panel:

  • Hover to view tooltips with details
  • Click Inspect → to view the query and results
  • Click Download CSV → to save the panel data

Example queries:

Prometheus:

rate(http_requests_total{job="nginx"}[5m])

Loki:

{job="app", level="error"} |= "Exception"

📘 Recommendations for First-Time Users

  • Use reasonable time ranges (e.g., 1h, 6h). Avoid 30d+ unless needed — it may slow down the system
  • If a panel doesn’t load — try reducing the time range
  • If you see errors, click Inspect → Query to see the response from the data source
  • Always use "Save As" if you want to change a dashboard
  • Contact DevOps if you’re missing variables, dashboards, or if something looks broken
